Seven out of ten parts we make go straight to vehicle makers. The aftermarket parts come off the same lines, designed and tested by the same engineers.

No second-tier plant

FRAP doesn't keep a separate factory for the aftermarket. Your parts come from the same Turin factory as the OE parts.

Tested like OE

Fatigue rigs, salt spray and a 100% crack check on ball studs, under IATF 16949.

From ATV to truck

4,700+ parts for cars, pickups, vans, trucks, tractors, quads and side-by-sides.

Classics too

1,200+ parts for cars built before 1990, including 170+ for Alfa Romeo, where others stopped long ago.

EXEDY behind it

Sold and supported by EXEDY's own companies worldwide, with a 3-year warranty.

Global network

Where EXEDY iswe are

EXEDY FRAP parts are sold through 14 EXEDY companies, the same teams that already supply EXEDY clutches to workshops in more than 80 countries.

See the network

Americas

USA and Canada, Mexico, and Latin America

Africa

South Africa

Middle East

Dubai, with offices in Amman and Nairobi

Asia

Japan, China, Thailand, Malaysia, Singapore, Indonesia and India

Oceania

Australia and New Zealand

Number of EXEDY companies per region.

The company

Italian engineeringJapanese reach

FRAP knows how to build a ball joint for a car that does 300 km/h. EXEDY knows how to get that part to a workshop in Kuala Lumpur, Lima or Brisbane. In 2026 the two joined forces.

The company

Everyday · OEM Advanced

Everydayquality

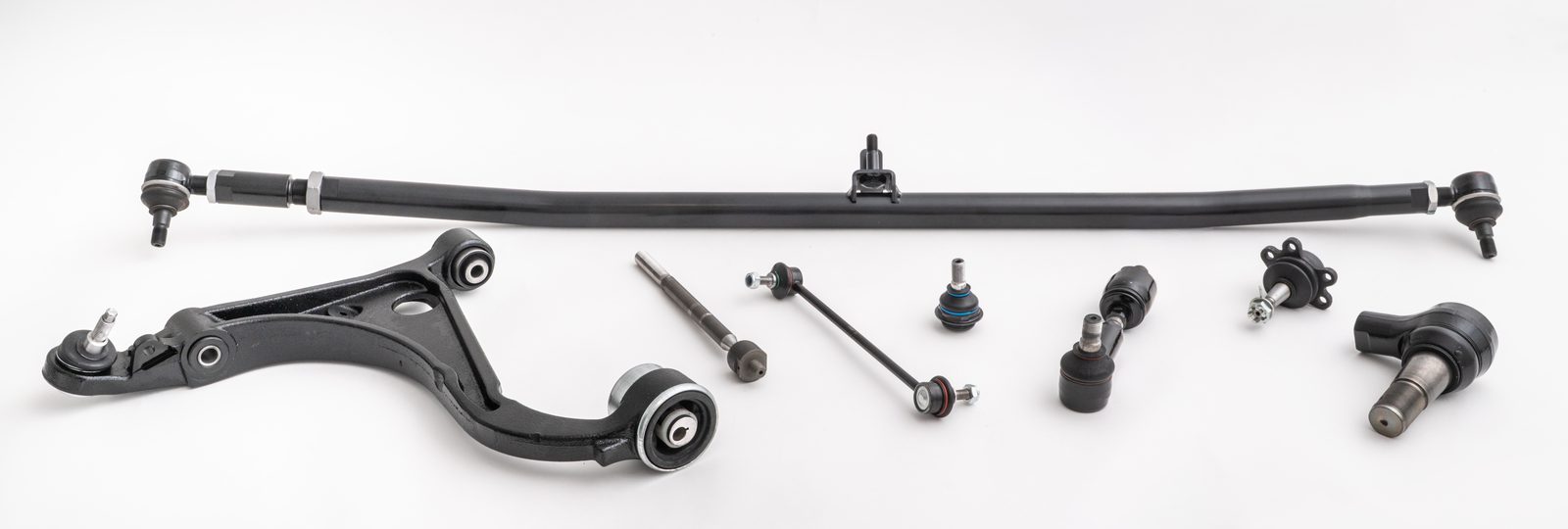

Ball joints, tie rod ends, control arms and links for everyday cars, SUVs and pickups. Developed and tested on the same rigs, and to the same standard, as the OE parts we build for vehicle makers.

1,000MPaBall stud strength, 42CrMo4 steel

500hSalt spray test without rust-through

100%Of ball studs crack-checked

3yearsWarranty

What's inside

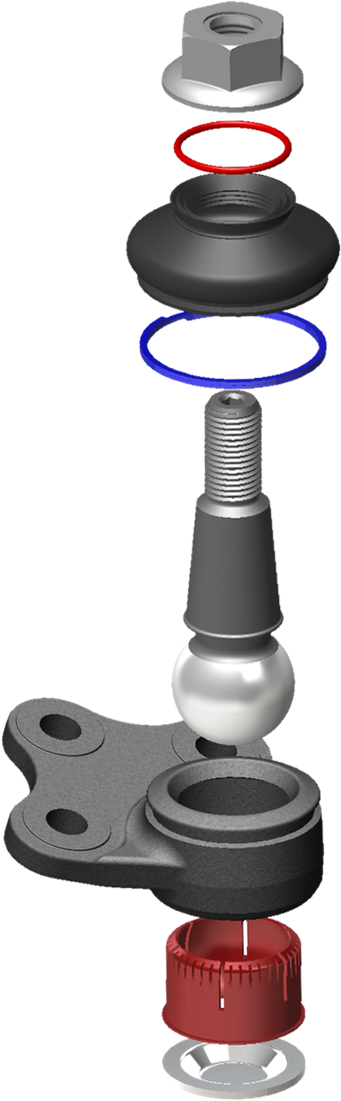

Inside aball joint

Five details a mechanic can check on the bench. Each one fixes a way a cheap part fails.

Hardware included

Everything in the box.

Grade 10.9 nut, bolts and cotter pin

Sealed boot

Keeps water and grit out.

Chloroprene rubber, multi-lip, retaining rings

Hardened ball stud

Won't snap, won't wear oval.

42CrMo4 steel, induction-hardened

Coated housing

No rust on the outside.

Zinc-flake (Geomet) coating

POM bearing shell

No play, no clunk.

Low-friction polymer, stable under load

The range by part

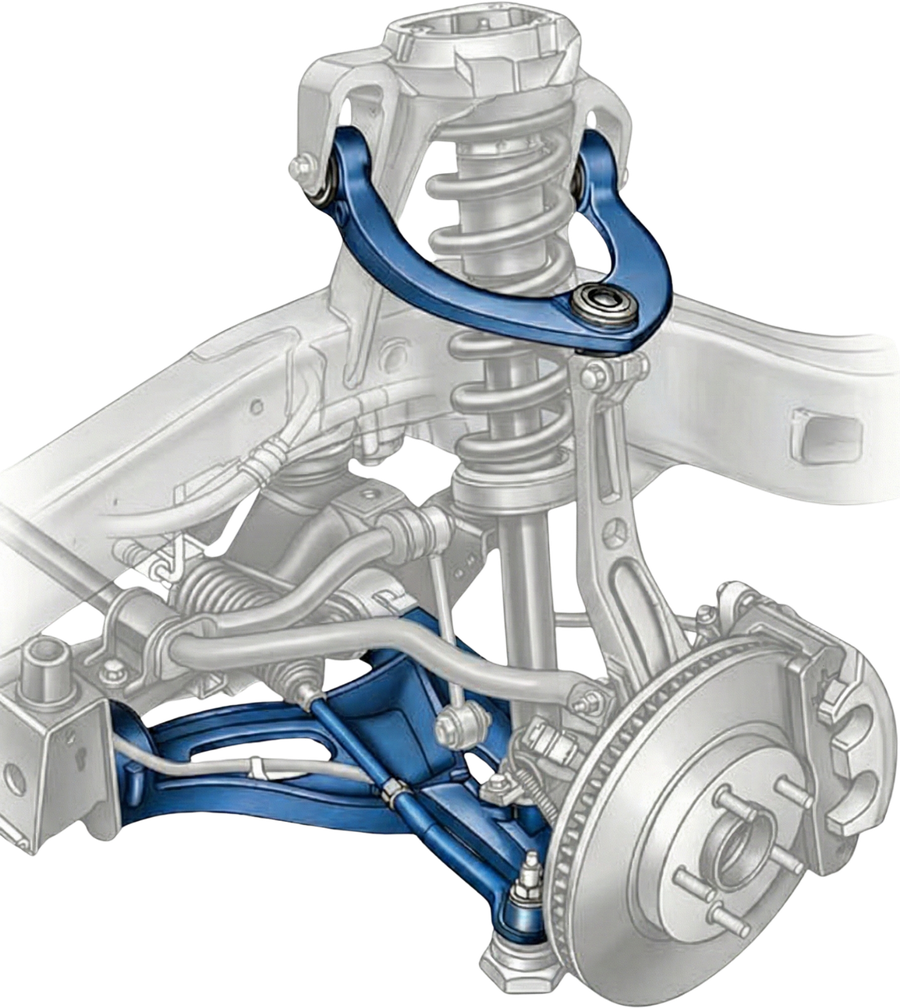

Every part ofthe front axle

Tap a number to see the part and how many references we make.

Electric and hybrid

Ready forheavier cars

Battery packs add hundreds of kilos and electric motors deliver full torque at once. Standard joints wear out early. Our parts for electric and hybrid platforms are designed for it.

Larger ball

Spreads the extra weight of the battery pack.

Hardened stud

Heat-treated for the mass and torque of electric cars.

Right breakaway torque

Matched to electric power steering and steer-by-wire.

Quiet

Special grease and polymer inserts, because an electric car has no engine noise to hide a knock.

In the box

Ready to fitstraight from the box

Everything for one job in one box, so the car leaves the lift sooner.

Pre-assembled

Control arms come with ball joint and bushings already pressed in.

New hardware

Grade 10.9 nuts, locking bolts and cotter pins. Never reuse tired original bolts.

Clear label

OE cross-reference numbers, vehicle data and a QR code to the part's page and fitting data.

Traceable

A batch code on every box, back to the production run in Turin.

Workshop know-how

Steering andsuspension basics

Terms you'll meet when diagnosing a car that pulls, wanders or knocks.

Play (compliance)

Unwanted movement in a joint or bushing under load. It shows as vague steering, wandering on the motorway and knocks over bumps. A worn plastic bearing shell is the usual cause.

Camber

How far the wheel leans in or out at the top, seen from the front. Wrong camber wears the inside or outside edge of the tyre.

Caster

The backward tilt of the steering axis. Positive caster keeps the car straight and brings the wheel back after a corner. Lift kits and worn arms reduce it.

Toe

Whether the front of the wheels points in or out. Set by the tie rods; a worn tie rod end changes it and eats tyres.

Breakaway torque

The force needed to start a ball joint turning. Too low feels loose; too high makes the steering stiff and stops it returning to centre.

Memory steer

The car keeps pulling to one side after a turn. Often a binding ball joint, or an upper arm that doesn't rotate freely.

Always replace in pairs

Left and right parts wear together. Replacing one side leaves the car pulling and the other side close to failure. Check the alignment afterwards.

84Car brands covered

3,557Models, from classics to new cars

1,100+Parts for Japanese, Korean and Chinese cars

Coverage

From 1947to today

European, Asian and American cars, including classic and discontinued models that nobody else still makes parts for. And the range keeps growing: new applications are added every month, more and more for Japanese, Korean and Chinese cars.

Search the catalogue

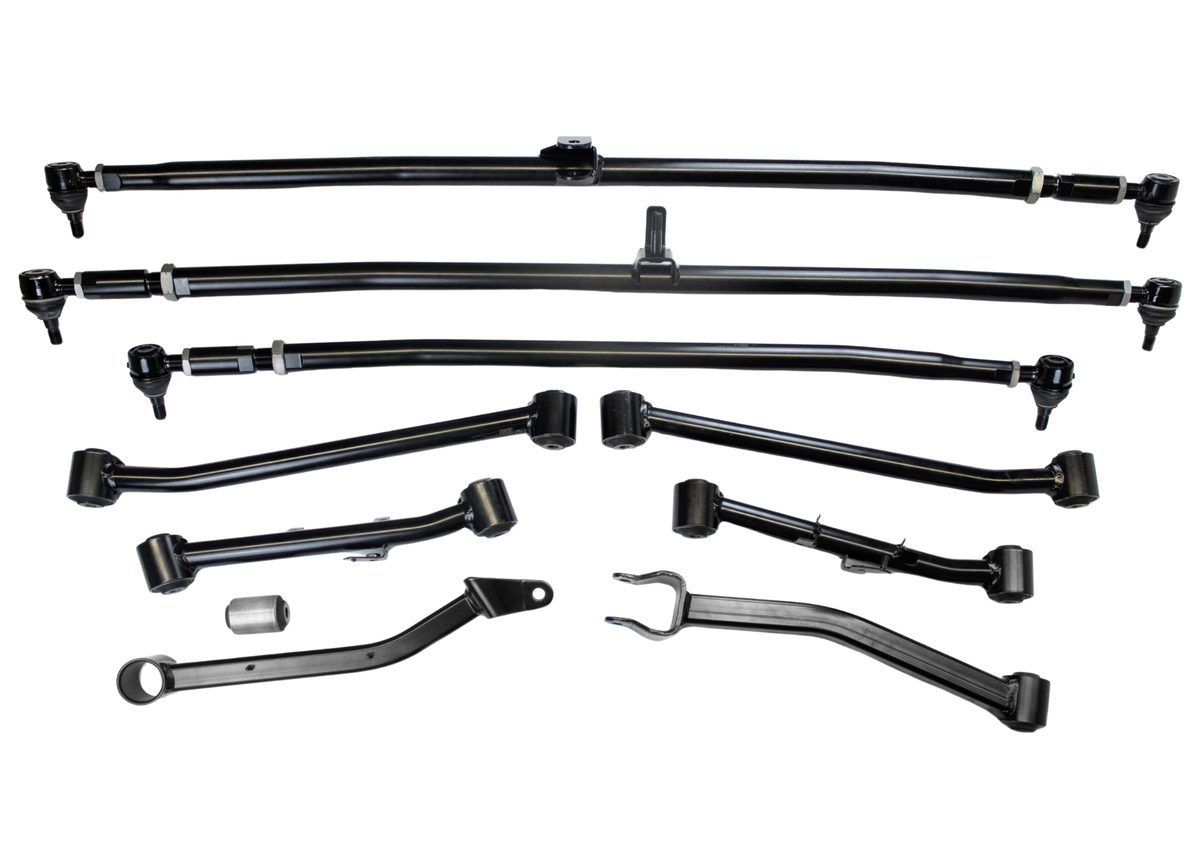

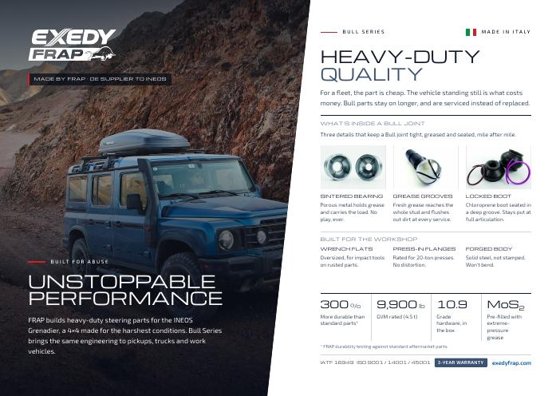

Built for abuse · Bull Series

Heavy-dutyquality

For vans, fleets, pickups, 4×4s, trucks and farm machinery. Parts made for the loads, dirt and hours that ordinary parts were never built for.

Why Bull

Built to keepthe fleet moving

For a fleet, the price of a suspension part is small. The van standing still is what costs money. Bull parts are built to stay on the vehicle longer, and to be serviced instead of replaced: 300% more durable than standard parts.*

Forged bodies

Solid forged arms instead of stamped steel. They don't bend or fold under heavy loads.

Greaseable

Grease fittings for re-greasing at every service, so you can see the joint's condition and plan maintenance.

Sintered bearings

Porous metal bearings hold the lubricant inside the joint.

Heavy hardware

Grade 10.9 hardware, 12.9 on high-stress applications.

Pre-filled

MoS₂ extreme-pressure grease from the factory, ready to fit.

Workshop-ready

Oversized wrench flats for impact tools, and press-in flanges rated for 20-ton presses.

Plastic vs metal

Why Bull hasno plastic inside

Standard joints use a plastic bearing: smooth and quiet, ideal for everyday cars. Under heavy loads, heat and mud, metal lasts longer.

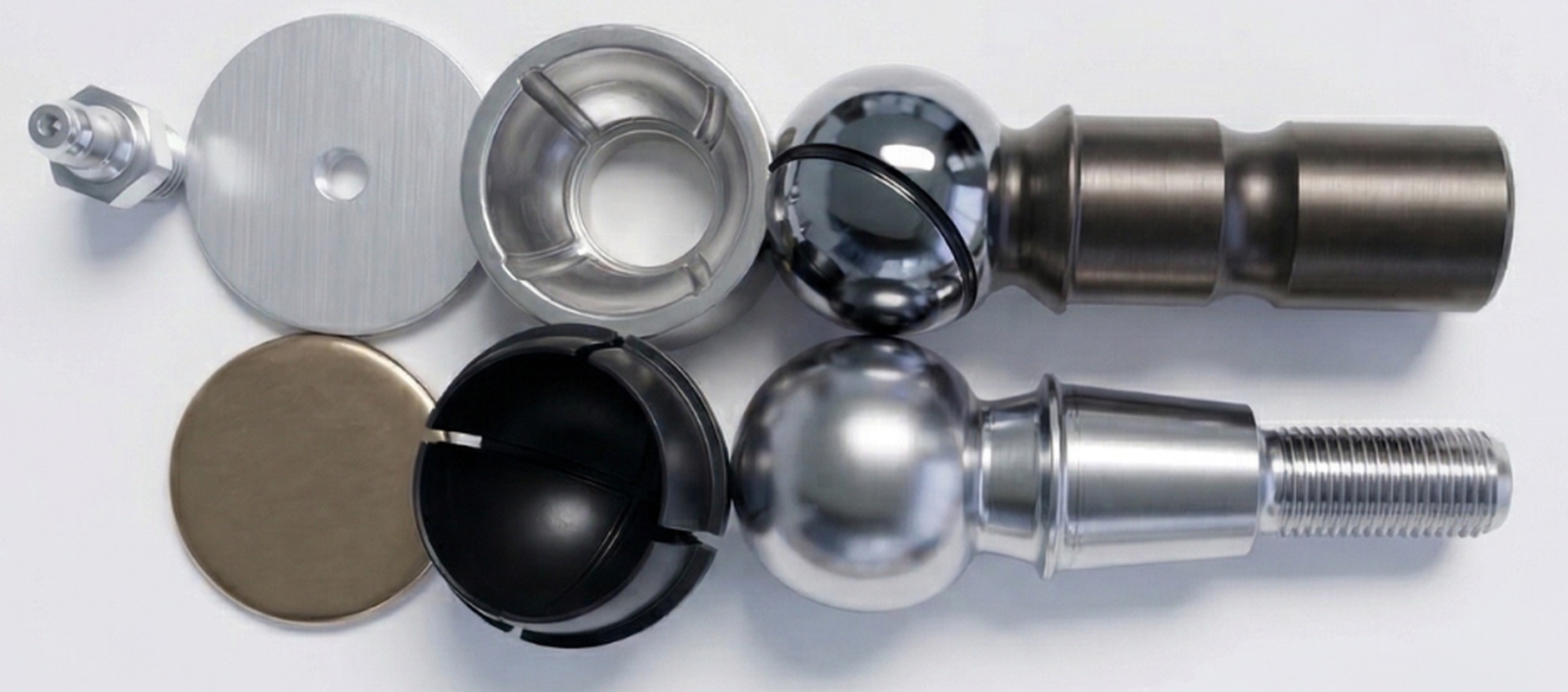

Bull joint parts (top row) and standard joint parts (bottom row)

Standard	Bull
1Sealed cover, no fitting	1Grease fitting
2Plastic bearing	2Sintered metal bearing
3Smooth ball pin	3Ball pin with grease grooves

	Standard · plastic bearing	Bull · sintered metal
Brake heat	Can soften over time	Not affected
Water, mud, grit	Can wash the grease out	Holds up. Fresh grease flushes dirt out
Grease	Sealed for life	Greasable with any shop grease
Heavy loads, potholes	Built for passenger-car loads	Metal carries the load
Steering feel	Smooth	Just as smooth with power steering
Missed service	Relies on the factory fill	Porous metal holds oil in reserve

Plastic for the daily driver. Metal for the hard miles.

Workshop guide

Servicing aBull joint

A Bull joint is made to be greased, not thrown away. A few minutes at every service keeps it tight and clean inside.

How to service it

When

At every oil change or chassis service. More often after mud, water or heavy work.

What

Any shop grease and a standard grease gun.

How long

A few minutes per joint.

Applications

Where Bullworks

VansDelivery fleets and municipal vehicles, up to 4.5 t

4×4Pickups and off-road vehicles with lift kits and heavy loads

TrucksSteering linkages for heavy trucks and semi-trailer tractors

FarmSteering parts for tractors, matched to OE specification

* FRAP durability testing against standard aftermarket parts.

OE pedigree

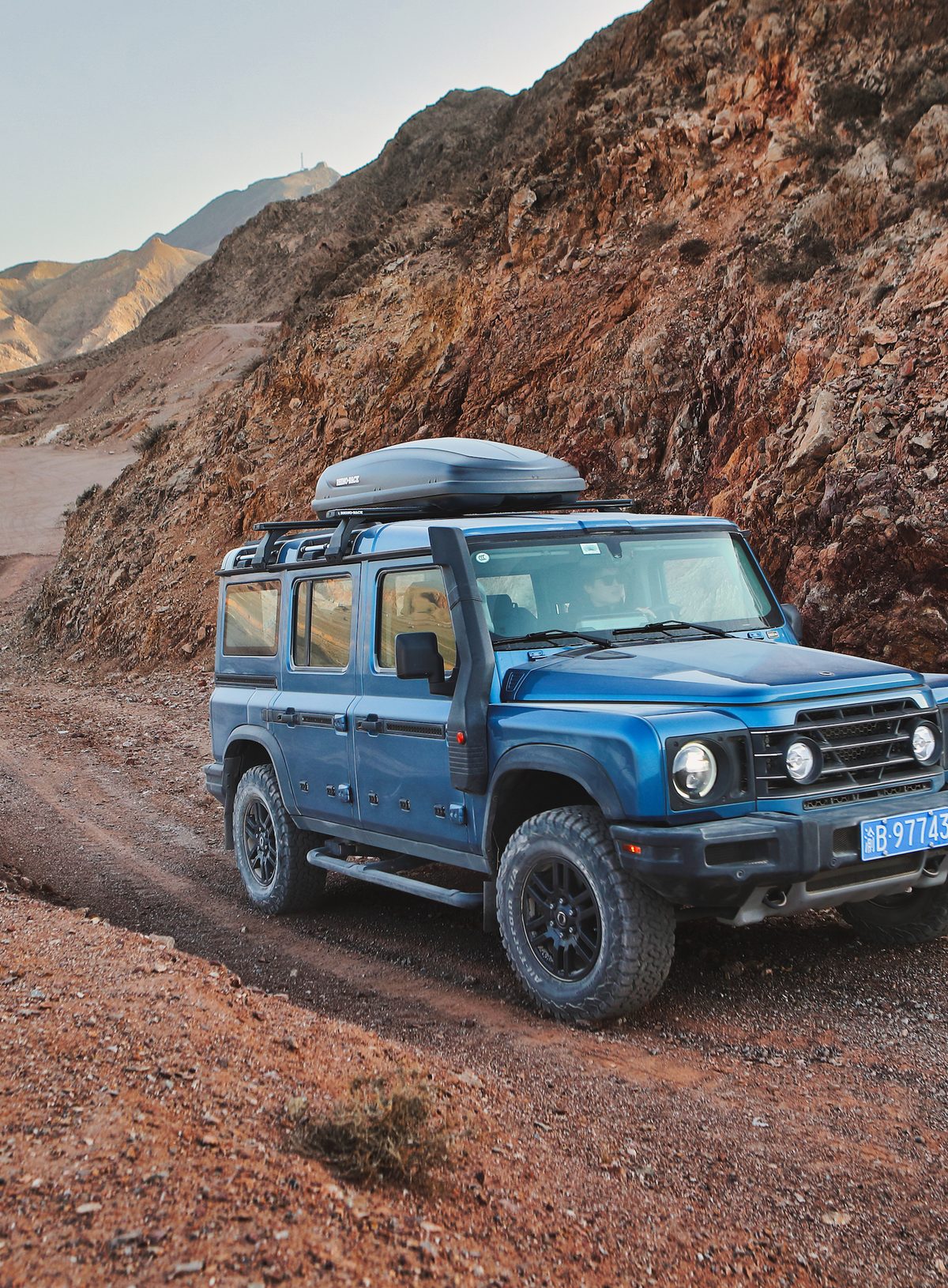

On the INEOSGrenadier

FRAP supplies heavy-duty steering parts for the INEOS Grenadier, a 4×4 built for the harshest conditions. Bull Series parts come from the same factory and the same engineers.

Bull Series / Servicing a Bull joint

Bull Series · Workshop guide

Servicing aBull joint

Bull joints have a grease fitting and grooves in the ball pin. Fresh grease reaches the whole joint and pushes old grease and dirt out. Do it at every service and the joint keeps going.

Clean the fitting

Wipe the grease fitting so no dirt is pushed into the joint.

Grease

Use a standard grease gun and any shop grease. Pump slowly.

Watch the boot

Stop as soon as the boot starts to fill out. Too much pressure can damage it.

Wipe off

Remove the excess grease around the fitting and the boot.

Check

Look at the boot and check the joint for play while the vehicle is up.

What to look for

Signs toact on

Greasing is also the moment to check the joint.

Grease won't go in

The fitting may be blocked. Clean it or replace the fitting, then try again.

Torn boot

Water and grit get in. Replace the joint before the damage spreads.

Play in the joint

Knocking or movement you can feel by hand means the joint is worn. Replace it, and check the other side too.

Missed a service?

The sintered bearing holds oil in reserve. Grease it at the next stop.

Torque values and fitting details for each part are in the instructions in the box. Questions? info@exedyfrap.com

Back to Bull Series

Powersports · ATV & UTV

Mud, rocksand water

An ATV steering joint lives in mud, sand and water, and takes a hit from every rock and root. Stock parts bend, wear loose and leak. Ours are made for that abuse.

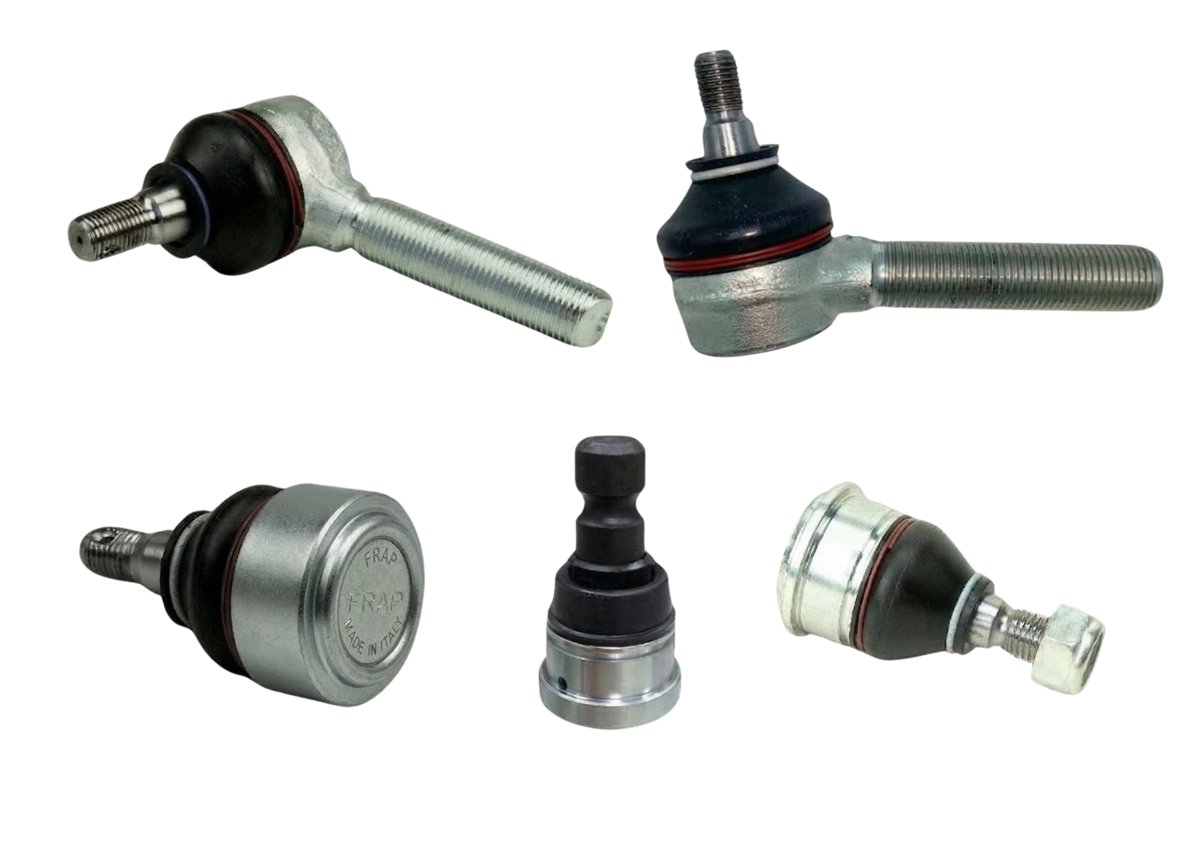

ATV & UTV parts

Find partsfor your machine

124 part numbers for 1,500+ quads and side-by-sides. Type the model, for example RZR, Sportsman, Outlander or Grizzly.

124ATV and UTV part numbers

1,500+Models covered

10Brands, from Polaris to KTM

1977–2025Model years

The upgrade

12 mminstead of 10

Our heavy-duty tie rod ends replace the 10 mm stock ends that bend on the first big rock. 44% more steel in the cross-section, about twice as hard to bend.*

Sealed

Deep-water seals and boots keep mud, sand and water out of the joint.

Reinforced

Housings strengthened where rocks and roots hit hardest.

Protected

A corrosion finish tested in salt spray, for wet and salty trails.

Fits

Polaris · Can-Am · Honda · Yamaha · Arctic Cat · Kawasaki · Suzuki · CFMOTO · Kymco · KTM

For the counter

How manyper vehicle

Front suspension	Typical models	Ball joints per vehicle	Tie rod ends per vehicle
MacPherson strut	Polaris Sportsman 400–800, Ranger 570, Ace	2 lowerF2814	2
Double A-arm	Polaris RZR, Ranger XP, General, Scrambler, Sportsman XP	4, same part upper and lowerF3372 · F4645 · F4767	2
Double A-arm	Can-Am Outlander, Renegade, Maverick, Defender, Commander	2 lowerF6622 · fits 230+ Can-Am models	2

* Cross-section +44% and bending stiffness ×2.07 for solid rods of the same steel.

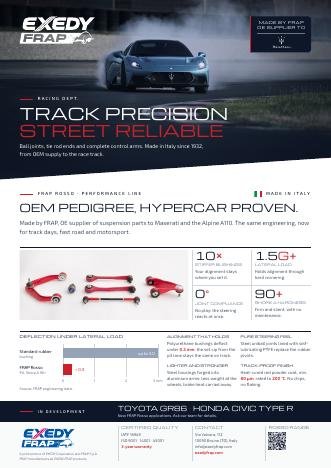

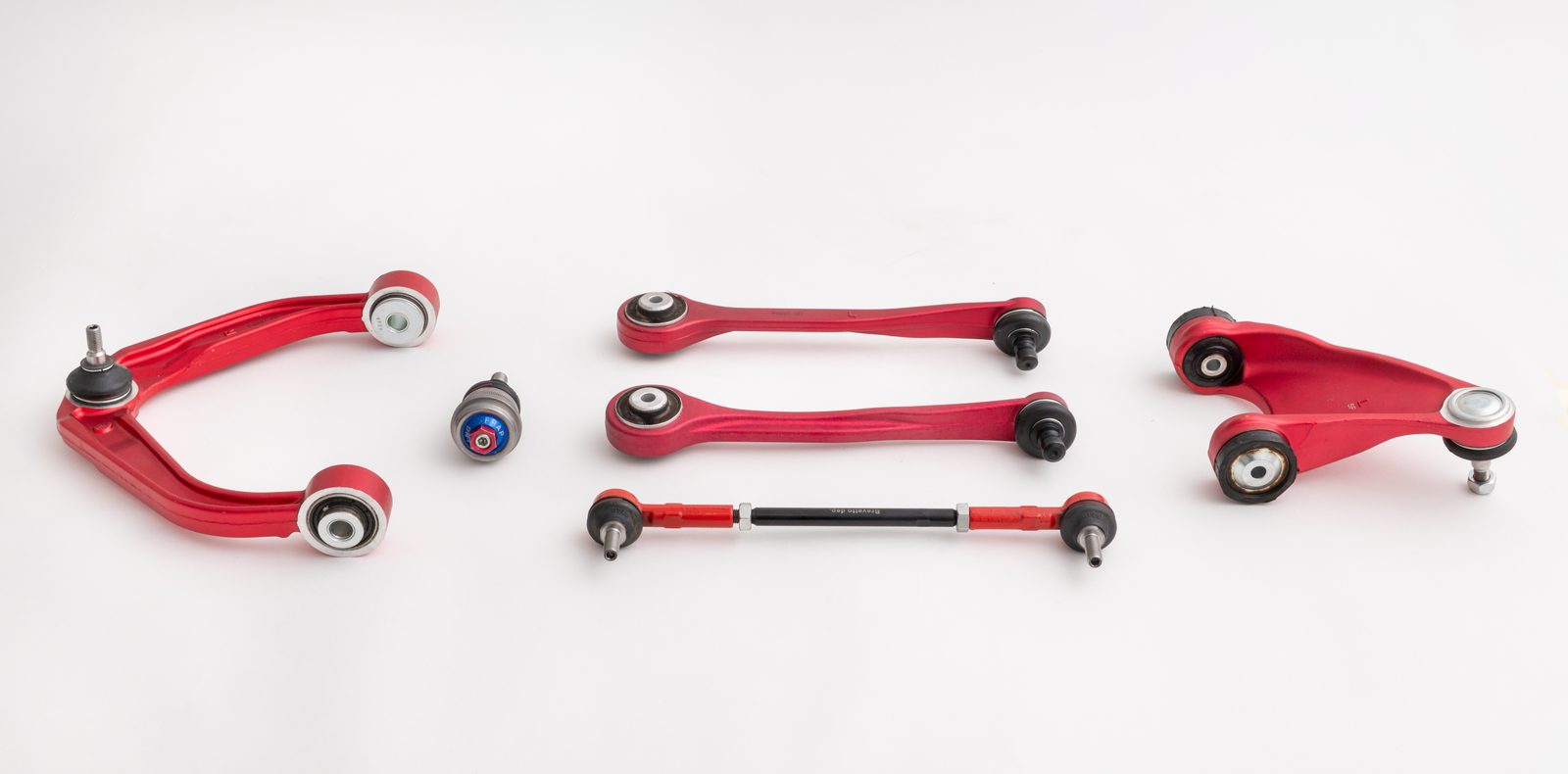

Built for the edge · FRAP Rosso

Sharper inevery corner

Performance control arms, kits and adjustable links, from the factory that builds OE suspension arms for Maserati and the Alpine A110.

Why Rosso

Built forcontrol

Factory suspension is a compromise. Soft rubber keeps the cabin quiet, but under braking and in corners it gives way: the wheels move, the alignment shifts and the steering goes vague. Rosso replaces that compromise with stiffer bushings and stronger arms, and still bolts on like the original.

Three sub-lines

Street tocircuit

Available

Rosso Street

Stiffer arms and stronger bushings for fast road cars. 96 arms for 125 models from 13 brands.

In development

Rosso Track

Uniball joints and polyurethane bushings that hold the geometry at the limit. Coming for the Toyota GR86 and Honda Civic Type R, with more to follow.

In development

Rosso Pro-Drift

More steering lock and adjustable geometry for drift cars.

OE vs Rosso

The differenceis in the bushing

Original

Two small rubber pads take all the load. They flex, wear and start to knock.

FRAP Rosso

A stronger, stiffer bushing spreads the load. Less flex, less wear, less noise. POM bushings on selected parts.

13Parts in one box: complete axle kits, one order number

8Lengths of patented adjustable stabiliser links, M10 and M12

1,328Models the adjustable links fit

OE pedigree

From the samefactory floor

FRAP makes the suspension arms for the Maserati MC20 and the Alpine A110, and arms and ball joints for other European sports cars. Rosso parts come from the same engineers, rigs and factory floor.

The company

Italian engineeringJapanese reach

FRAP knows how to build a ball joint for a car that does 300 km/h. EXEDY knows how to get that part to a workshop in Kuala Lumpur, Lima or Brisbane. In 2026 the two joined forces.

1932

FRAP

Founded in Piossasco, near Turin, and later moved to Bruino. Today an OE supplier to makers of sports cars, passenger cars, off-road vehicles, tractors and trucks, including INEOS.

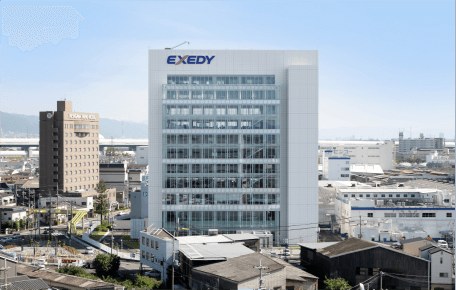

1950

EXEDY

Founded in Osaka. The world's largest independent maker of torque converters and a Tier-1 clutch supplier to the major vehicle makers.

2026

EXEDY FRAP

A joint venture of EXEDY Corporation and FRAP S.p.A. in Turin. FRAP manufactures all EXEDY FRAP products; EXEDY's aftermarket network brings them to workshops worldwide.

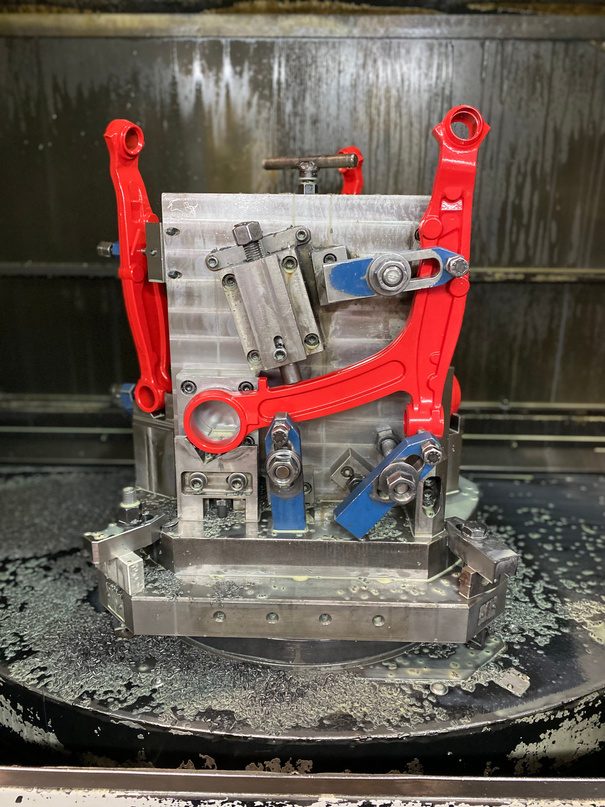

Control arms in a machining fixture — Machining fixture, Turin.

FRAP · Turin, Italy

One factoryevery part

Turin is where Europe's car industry grew up, and FRAP has made chassis parts here since 1932. Seven out of ten parts leave the factory as original equipment. The aftermarket parts come off the same lines, are checked on the same rigs and are inspected by the same people. FRAP calls it Integrated Quality: design, machining, assembly and testing in one Italian factory.

4.5MParts a year

70%OE production

100%Assembled and tested in-house

FRAP in numbers

Over ninety yearsof chassis parts

From a workshop near Turin in 1932 to an OE supplier for sports cars, tractors and trucks, with one factory and one standard.

1932Founded near Turin

4.5MParts made a year

5,000+Products in the range

90+People in the factory

70%Of production is OE

80+Export countries

OE for every kind of vehicle

From sports carto tractor

The same engineers design parts for cars that do 300 km/h and for machines that work a field for twelve hours. That breadth is rare in this industry.

Sports cars

Suspension arms and ball joints for European sports cars

Passenger cars

Steering and suspension parts for a European volume maker

Off-road

INEOS Grenadier

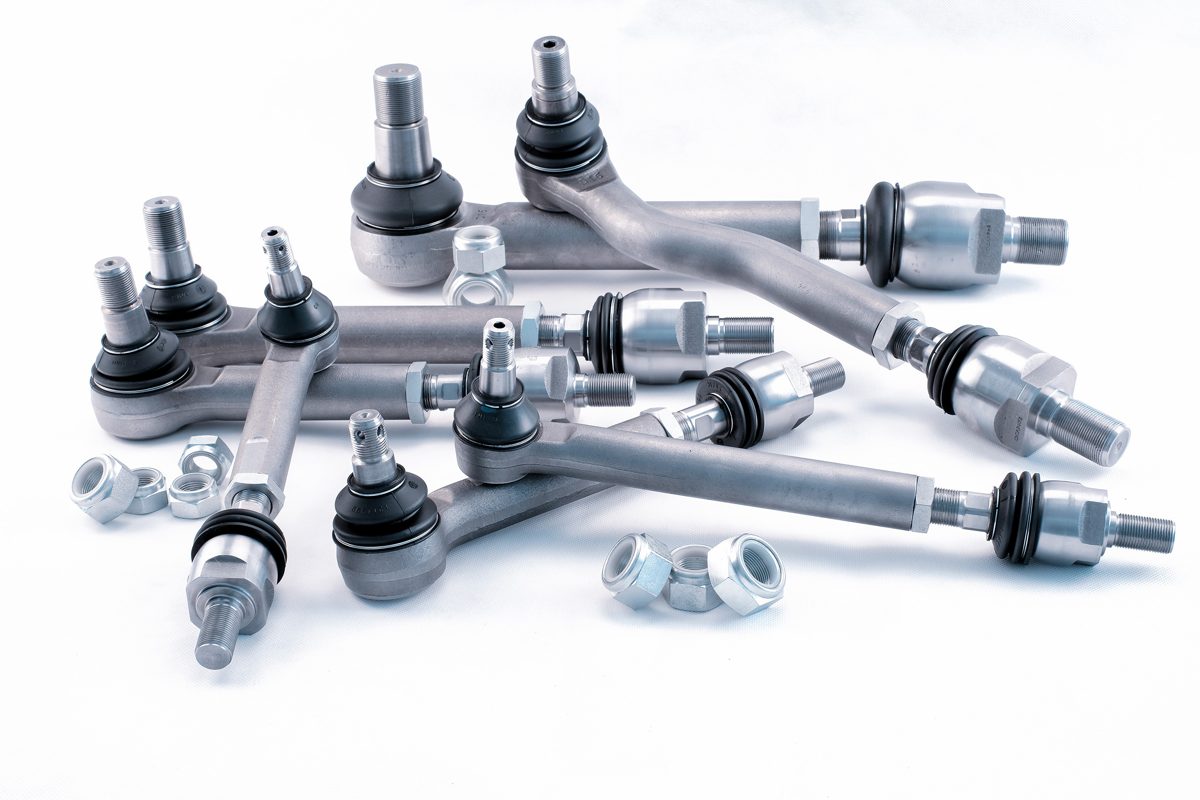

Agriculture

Steering parts for leading tractor makers

Trucks

Steering linkages for European trucks

Our test lab

Broken herenot on the road

Every design is tested to destruction in our own lab before it goes into production, with the same equipment we use for OE approval.

150kNTest rig load, on 3 axes at once

10HzFatigue cycles, with potholes and articulation simulated

2.5mLongest part the rig can test

>3×Safety factor in design, checked by FEA

500h+Neutral salt spray (NSS)

−40/+150 °CThermal shock

100%Eddy current crack check on ball studs

CMMDimensional checks against the drawing

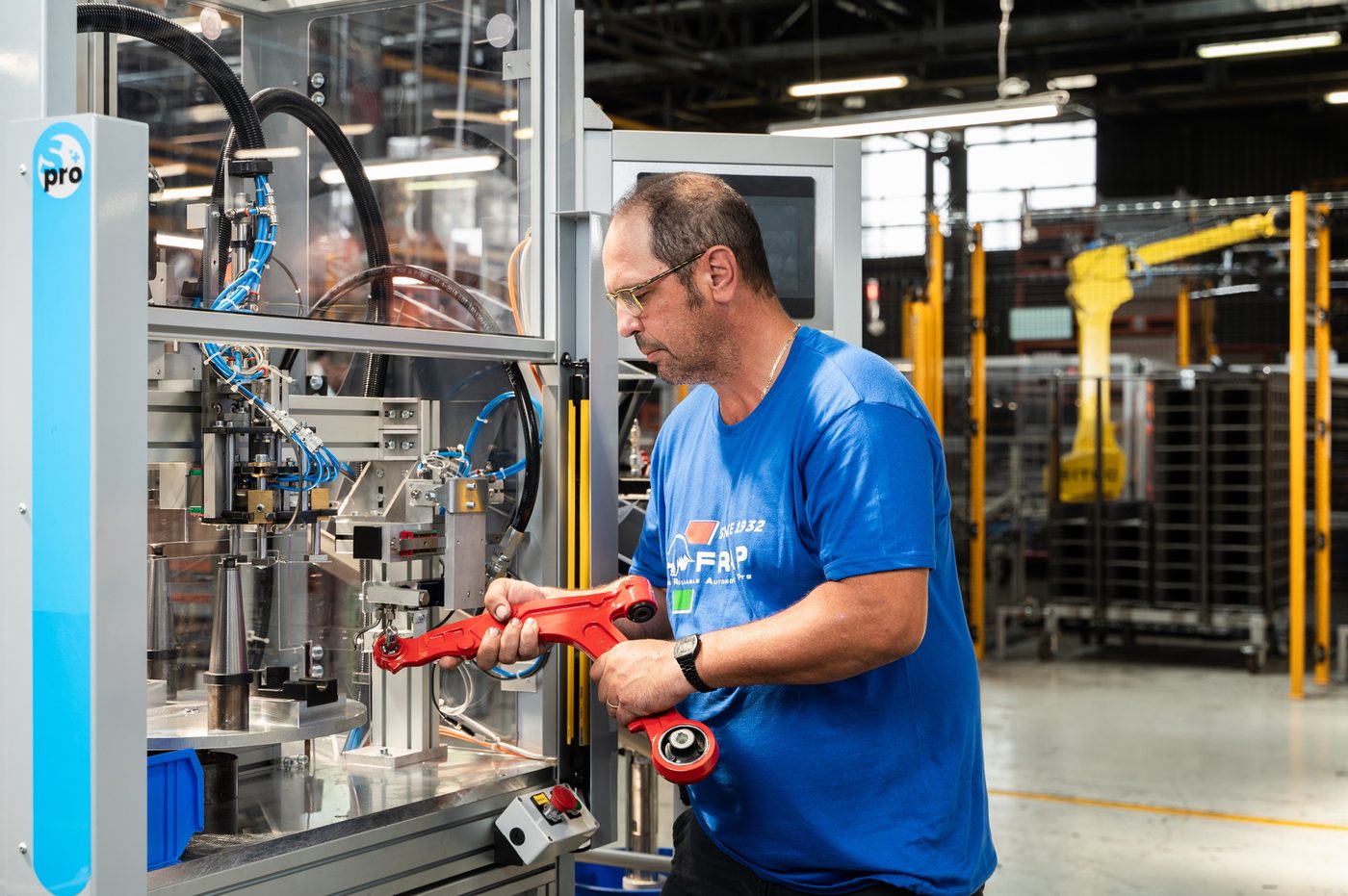

Assembly line near Turin — Assembly line, Turin.

Classic cars

Parts nobodyelse still makes

When a car maker stops supplying a part, the car still needs it. FRAP has kept the knowledge and tooling for older models: more than 1,200 parts for cars built before 1990, including 170+ for Alfa Romeo, and cars back to 1947.

How a part is made

From drawingto box

Design

CAD and FEA simulation of every load case before any steel is cut.

Machine

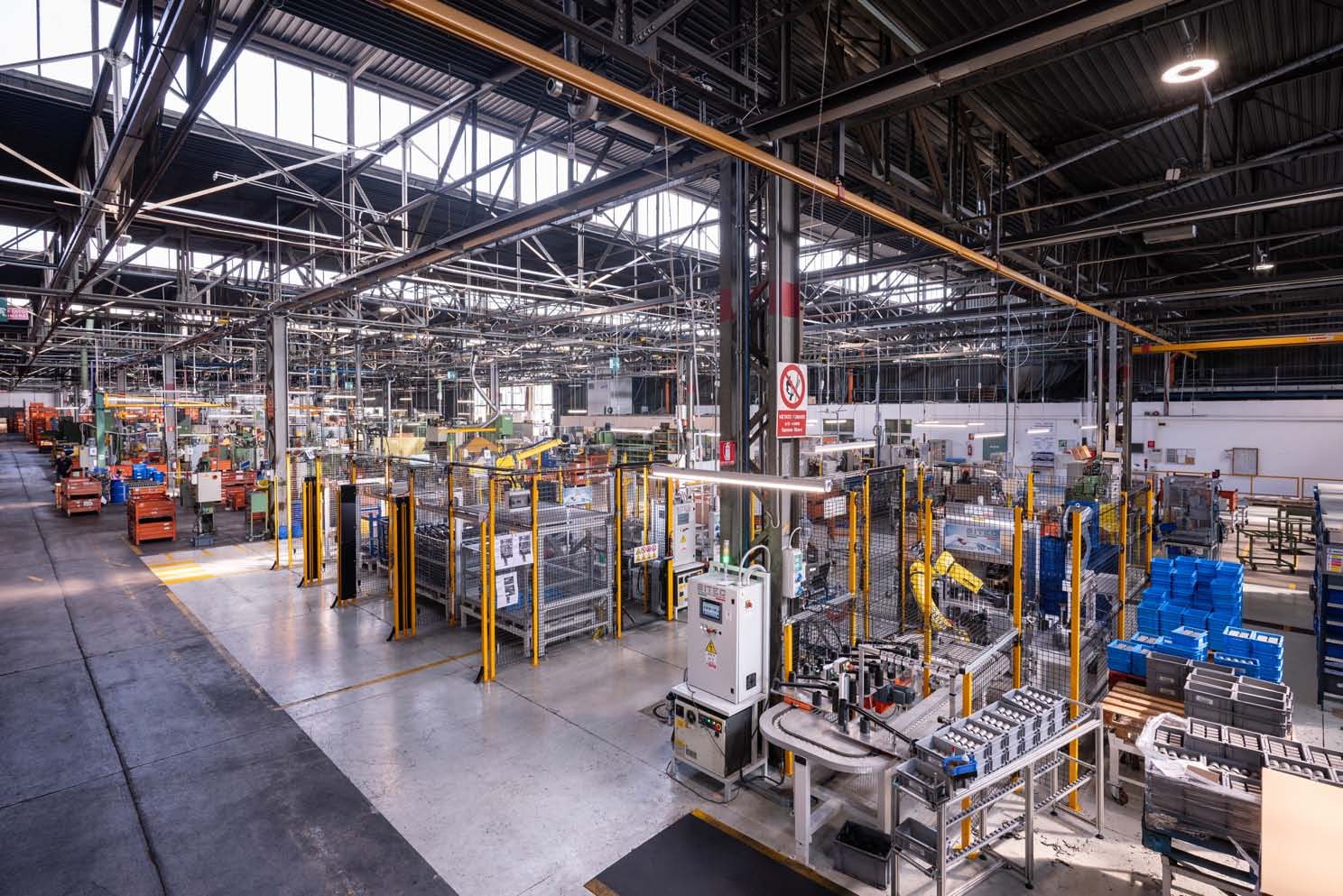

Forgings from specialist partners, machined in Turin with robotic cells for repeatable precision. Every ball stud is crack-checked in the process.

Assemble

Joints, bushings and boots assembled on our own lines.

Test

150 kN 3-axis fatigue rig, salt spray and thermal shock in our own lab.

Inspect

CMM checks against the drawing, and a batch code on every box.

IATF 16949ISO 9001ISO 14001ISO 450013-year warranty

EXEDY Corporation · Osaka, Japan

Safety firsthighest quality

EXEDY Corporation head office in Neyagawa, Osaka — EXEDY head office, Neyagawa, Osaka.

Since 1950

Drivetrain specialist from Osaka, known for Japanese quality and manufacturing.

Product leader

The world's largest independent maker of torque converters, and a Tier-1 clutch supplier to the major vehicle makers.

Aftermarket

A trusted name for OE-quality clutches in workshops worldwide, sold through EXEDY's own companies.

Future

Drivetrain technology for conventional and electrified vehicles.

EXEDY global network

Five regionsone supply chain

EXEDY runs its own aftermarket companies on every continent. They know the local car parc, hold stock and support the workshops. Now they carry EXEDY FRAP steering and suspension parts too.

See all EXEDY companies

14EXEDY companies selling EXEDY FRAP

18Countries with an EXEDY office

5Regions

80+Countries reached

OE partners

Trusted bythe makers

Italian sports carSuspension arms

AgricultureTractor steering parts

INEOS GrenadierHeavy-duty steering parts

Global network

Sold throughEXEDY

EXEDY FRAP parts are made in Turin and reach workshops through 14 EXEDY companies around the world, the same teams that already deliver EXEDY clutches. Ask your EXEDY partner for EXEDY FRAP.

EXEDY FRAP factory, TurinEXEDY head office, OsakaEXEDY company selling EXEDY FRAP

14EXEDY companies selling EXEDY FRAP

18Countries with an EXEDY office

1Factory, in Turin

80+Countries reached

Find your partner

Who to callin your country

Your country

The companies

EXEDY companiesselling EXEDY FRAP

Factory and global supplyEXEDY FRAP S.r.l.

Via Volvera 112, 10090 Bruino, Turin, Italy. Serves Europe directly.

Head office · since 1950EXEDY Corporation

Neyagawa, Osaka, Japan.

Company details from exedy.com, October 2026.

Downloads

Cataloguesand flyers

Everything a distributor or workshop needs: catalogues, flyers and the full parts list for your own system.

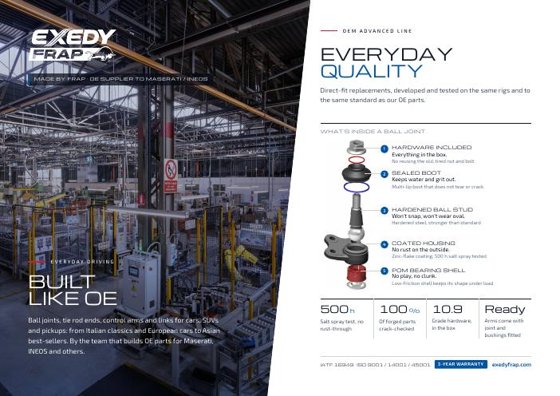

OEM Advanced flyer

The everyday range in numbers, with key references.

PDF · 2 pages · A4 · English

Download 1.5 MB

Bull Series flyer

Plastic vs metal: why a Bull joint lasts on hard-working trucks.

PDF · 2 pages · A4 · English

Download 1.1 MB

FRAP Rosso flyer

The performance line on one page.

PDF · 1 page · A4 · English

Download 3.8 MB

FRAP Rosso catalogue

Every Rosso arm, kit and adjustable link, by car.

PDF · 16 pages · 2026 edition · English

Download 4.9 MB

ATV & UTV catalogue

All 124 powersports parts by brand and model.

PDF · Excel · English

Part numbers
OE numbers
Vehicles

Full product catalogue

All part numbers with OE cross-references and fitments, for distributors' systems.

Excel · CSV · updated monthly

Legal

Privacyand cookies

Who we are. This website is run by EXEDY FRAP S.r.l., Via Volvera 112, 10090 Bruino (TO), Italy, VAT no. IT13423480014, the data controller. Contact: info@exedyfrap.com.

No cookies, no tracking. This website does not set cookies and does not use analytics, advertising or social media trackers. That is why there is no cookie banner.

What is processed. When you visit a page, our hosting provider Cloudflare, Inc. processes technical data such as your IP address and browser type, for security and to deliver the site. Cloudflare acts as our processor. We do not use this data to identify you. Fonts and scripts are served from our own website.

Search. Part number, OE number and vehicle searches run in your browser. They are not stored or sent to us.

Contacting us. If you call or email an EXEDY company listed on this site, that company processes your details under its own privacy policy.

Your rights. Under the GDPR you can ask for access to, correction or deletion of your personal data, and you can object to its processing. Write to info@exedyfrap.com. You can also lodge a complaint with the Italian data protection authority, the Garante per la protezione dei dati personali (garanteprivacy.it).

Last updated: October 2026.

Catalogue

Find theright part

4,700+ parts for cars, pickups, trucks, ATVs and side-by-sides. Search by FRAP number, OE number or vehicle.

Catalogue /

Specifications

OE references

The QR code on the box opens this page:

Fits

Brand	Model	Years

Extremeperformance

Unstoppableperformance
